In my previous post, I described how we have been able to use AspectJ to make JDT more friendly to other Java-like languages such as AspectJ itself and Scala. In this post, I am going to go into a little more detail as to how this happens. This post will be brief because there's really not much more to it.
(If you are unsure about what AspectJ and aspect-oriented programming are, there are plenty of places to learn about it. For an excellent long introduction to AspectJ and aspect-oriented programming, see Ramnivas's I want my AOP, and for an excellent two paragraph introduction to AspectJ see Adrian Colyer's AOP without the buzzwords).
We've implemented the Eclipse weaving service on top of Equinox Aspects (EA). Eclipse is highly dynamic and uses different classloaders for each plugin/bundle. For this reason, regular compile-time and load-time weaving will not work. We need something that can hook into the Equinox OSGi framework and perform weaving as bundles are loaded into the framework. This is exactly how EA works: EA provides a weaving hook that inspects each bundle as it is being loaded to determine if it requires any weaving. If the bundle does, it is sent off to the AspectJ load-time weaver. Actually, it is a little more fine-grained than this since classes are only sent to the weaver as they are loaded.
The benefit of using EA is that it helps us stay robust through different Eclipse versions because we are not shipping woven code or feature patches. Currently, the Eclipse weaving service is available for Eclipse 3.4, 3.4.1, 3.4.2, and (soon to be released) 3.5M5.
Wednesday, February 18, 2009
Thursday, February 12, 2009
Extending JDT Part I
In my last post, I described some limitations of JDT, and how it is Java-centric and does not support other Java-like languages such as AspectJ, Scala, and Groovy that compile to Java byte code. In this post, I will show you how the AJDT project has made JDT more extensible by using AspectJ to weave into the Eclipse framework in a way that is elegant, generic, and Eclipse-friendly.
I will start by describing a particular limitation of JDT: that Java-like languages are not able to plug in their own variants of the
An
This leaves us in a quandry: Java-like languages must plug into the Java model through creating custom
Well, just because the JavaDoc says
The real problem is the lack of control over instantiation of ICompilationUnits. ICompilationUnits are instantiated deep within the framework, in ways that are opaque to third party plugins. What we really want is to have some kind of factory that provides the correct kind of ICompilationUnit for each file. For our purpose, it is sufficient that *.aj files correspond to AJCompiltionUnit and *.java files correspond to CompilationUnit.
This sounds like a job for AspectJ! AspectJ allows us to intercept creations of CompilationUnit objects and determine if a different kind of object should be created instead.
As a first pass, we wrote this code:
Don't worry if you are unfamiliar with AspectJ, what this snippet does is fairly straight forward. The
This is very nice. Using this AspectJ code, the creation of
However, there are still a couple of considerations with this implementation:
Our second (and current) implementation of this aspect is as follows:
The AspectJ part of the snippet is the same as before. The difference is in the advice body. Instead of calling the
One benefit of this implementation is that it extends JDT behavior in a way that uses common Eclipse mechanisms—the extension point. This allows other plug-ins to extend in a well-defined and structured manner. This is the approach that the Scala development tools has chosen to follow, and other language development tools are on the way.
A second of the benefit of this approach is that the consumer of the
This is how it is possible to make JDT extensible to other languages in a simple and structured way. However, experienced AspectJ programmers may be confused at this point. Eclipse is built on an OSGi framework. Compile time weaving is not possible because JDT is already installed on a user's machine by the time AJDT is installed. And load time weaving is not possible because it cannot handle an OSGi environment. In a future post, I will describe the Eclipse Weaving Service, which is built on top of Equinox Aspects, that allows plugins to weave into Eclipse.
I will start by describing a particular limitation of JDT: that Java-like languages are not able to plug in their own variants of the
ICompilationUnit class. Then I will describe the how AJDT uses AspectJ and some factory methods to produce custom ICompilationUnits for AspectJ files. Finally, I will describe how we packaged up this functionality in an extension point so in a way that is generic and consumable by other development tools.ICompilationUnit
An
ICompilationUnit "represents an entire Java compilation unit", according to its JavaDocs. It is part of the IJavaElement hierarchy. An IJavaElement supplies a "common protocol for all elements provided by the Java model." The last lines of both JavaDocs for these elements are crucial: "@noimplement This interface is not intended to be implemented by clients." ICompilationUnits are starting point for much of JDT's functionality, including refactoring, content assist, indexing, and eager parsing.This leaves us in a quandry: Java-like languages must plug into the Java model through creating custom
ICompilationUnits if they are to be compatible with JDT, but ICompilationUnit is not allowed to be sub-classed.Well, just because the JavaDoc says
@noimplement, doesn't mean that we can't implement. It really just means that we do so at our own risk, and this is something that AJDT has been doing for years in the AJCompilationUnit class. The problem is not the difficulty of implementing ICompilationUnit.The Real Problem
The real problem is the lack of control over instantiation of ICompilationUnits. ICompilationUnits are instantiated deep within the framework, in ways that are opaque to third party plugins. What we really want is to have some kind of factory that provides the correct kind of ICompilationUnit for each file. For our purpose, it is sufficient that *.aj files correspond to AJCompiltionUnit and *.java files correspond to CompilationUnit.
This sounds like a job for AspectJ! AspectJ allows us to intercept creations of CompilationUnit objects and determine if a different kind of object should be created instead.
The Solution
As a first pass, we wrote this code:
pointcut compilationUnitCreations(PackageFragment parent, String name, WorkingCopyOwner owner) :
call(public CompilationUnit.new(PackageFragment, String, WorkingCopyOwner)) &&
within(org.eclipse.jdt..*) &&
args(parent, name, owner);
CompilationUnit around(PackageFragment parent, String name, WorkingCopyOwner owner) :
compilationUnitCreations(parent, name, owner) {
String extension = findExtension(name);
if (extension.equals(".aj") {
return new AJCompilationUnitProvider().create(parent, name, owner);
}
return proceed(parent, name, owner);
}
Don't worry if you are unfamiliar with AspectJ, what this snippet does is fairly straight forward. The
compilationUnitCreations pointcut identifies a set of points in the execution of the program. In this case, compilationUnitCreations identifies all locations where CompilationUnit objects are constructed. Beneath that, is an around advice declaration. It describes what to do at the pointcut instead of creating a CompilationUnit object. If the file extension is *.aj, then an AJCompilationUnit object is created. Otherwise, a standard CompilationUnit is created.This is very nice. Using this AspectJ code, the creation of
CompilationUnits has been delegated to the aspect, which can now inject AspectJ elements into the Java model. This opens up a world of functionality to AJDT that had been closed. For example, with this simple aspect, the renaming, moving, organize imports, and other kinds of code clean up and refactorings just work. No more ugly exceptions when you try to do these kinds of things.However, there are still a couple of considerations with this implementation:
- It is now our responsibility (i.e., AJDT's) to ensure that the pointcut matches through future versions. For example, a later version of Eclipse may add an argument to the
CompilationUnitconstructor. AJDT needs to stay on top of this. Not a problem. Unit tests are your friends. We have tests for each of our aspects that ensure they continue to provide the expected functionality as Eclipse evolves. This is no different from the rest of our test suite which helps ensure that AJDT's use of internal Eclipse APIs doesn't break in new versions of Eclipse. - This implementation works for AJDT, but what about other Java-like languages that require the same kind of JDT integration? For this, we can utilize one of the Eclipse platform's strengths$mdash;its extensible plug-in architecture.
Our second (and current) implementation of this aspect is as follows:
pointcut compilationUnitCreations(PackageFragment parent, String name, WorkingCopyOwner owner) :
call(public CompilationUnit.new(PackageFragment, String, WorkingCopyOwner)) &&
within(org.eclipse.jdt..*) &&
args(parent, name, owner);
CompilationUnit around(PackageFragment parent, String name, WorkingCopyOwner owner) :
compilationUnitCreations(parent, name, owner) {
if (inWeavableProject(parent)) {
String extension = findExtension(name);
ICompilationUnitProvider provider =
CompilationUnitProviderRegistry.getInstance().getProvider(extension);
if (provider != null) {
try {
return provider.create(parent, name, owner);
} catch (Throwable t) {
JDTWeavingPlugin.logException(t);
}
}
return proceed(parent, name, owner);
}
The AspectJ part of the snippet is the same as before. The difference is in the advice body. Instead of calling the
AJCompilationUnitProvider factory method directly, there is a call to the CompilationUnitProviderRegistry, which has a mapping from file extensions to ICompilationUnitProviders. A plugin can register its own ICompilationUnitProvider by using the org.eclipse.contribution.weaving.jdt.cuprovider extension point. It looks like this:

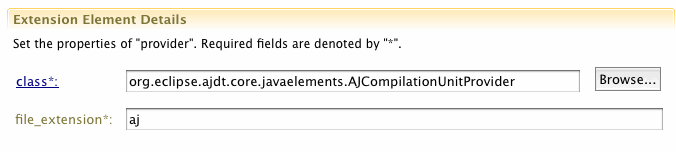

One benefit of this implementation is that it extends JDT behavior in a way that uses common Eclipse mechanisms—the extension point. This allows other plug-ins to extend in a well-defined and structured manner. This is the approach that the Scala development tools has chosen to follow, and other language development tools are on the way.
A second of the benefit of this approach is that the consumer of the
org.eclipse.contribution.weaving.jdt.cuprovider extension point does not need to be aware of the underlying aspect-oriented implementation. From the consumer's point of view, this extension point can be extended just like any other extension point. No understanding of AspectJ or AOP is required to actually use this extension point.This is how it is possible to make JDT extensible to other languages in a simple and structured way. However, experienced AspectJ programmers may be confused at this point. Eclipse is built on an OSGi framework. Compile time weaving is not possible because JDT is already installed on a user's machine by the time AJDT is installed. And load time weaving is not possible because it cannot handle an OSGi environment. In a future post, I will describe the Eclipse Weaving Service, which is built on top of Equinox Aspects, that allows plugins to weave into Eclipse.
Wednesday, February 4, 2009
JDT won't do that!
AspectJ is a language that is very close to Java, but it isn't Java. One might expect that since AspectJ is an extension of Java, Eclipse tooling for AspectJ would just be an extension of the Java Development Tools. But it's not that easy. This post describes the problems that we have faced when integrating AspectJ tooling into Eclipse, and motivates a solution that I will elaborate on in future posts.
JDT has not been engineered to be extensible, and rightly so. It is a set of tools that are finely tuned towards making the Java development experience as smooth and convenient as possible. Focusing on extensibility would be to the detriment of the JDT users who program in Java only.
However, this makes life difficult for us tool developers. Users expect high quality tooling for Java-like languages (i.e., languages that run on the JVM) because that is the bar set by JDT. Furthermore, they want tooling that integrates seamlessly with Java tooling. But, JDT won't do that! So, how can we provide good programmer experience in AJDT?
We want to make editing AspectJ look and feel as much like editing Java where it makes sense, and at the same time provide additional functionality so that the user is aware of AspectJ-specific issues. Up until AJDT 1.6.2, there have been limited options to integrate with JDT.
One example of successful integration is the AspectJEditor, which behaves mostly like JDT's CompilationUnitEditor, providing eager error detection, syntax highlighting, content assist, some refactoring support, etc.
The AspectJEditor should be a subclass of the CompilationUnitEditor, But the CompilationUnitEditor is not public API and AJDT really shouldn't be touching it. Or, at least, the responsibility is on us to maintain compatibility in future versions. In addition to using private APIs, the AspectJEditor uses some reflection to access private fields of its super class and copies some code, where reflection isn't practical. Through this combination of techniques, we have been able to largely implement JDT's behavior in AJDT. But, there is some functionality that we want AJDT to provide, but is not possible using private APIs, reflection, or code copying.
Let's take a look at the Open Type Dialog.
We would really like to see our aspect types in the standard Java Open Type Dialog. But this is unfortunately not possible. There is no API (public or private) that we can use to do this. Even the use of reflection or code copying will not help. What we really need is to gain access to JDT's Java indexer and somehow convince it to index aspect files.
This is a big problem, and one that we have run into many times during our development of AJDT. JDT is not engineered to be compatible with Java-like languages. But, tools for languages such as Groovy, Scala, and JRuby are gaining in popularity and require the same kind of JDT integration that is just not available. There is a long standing JDT bug to address this, but it does not seem like it will be fixed any time soon.
However, there is a solution! Since AJDT 1.6.2, we have been able to provide deep integration with JDT by using AspectJ on JDT itself. We are using Equinox Aspects to weave into the platform and expose functionality in a structured way through the use of Eclipse extension points. In future posts, I will describe how we have designed our JDT weaving service to expose otherwise inaccessible functionality in JDT and how this weaving service is generic enough to be used by tool developers for other languages.
You can also hear more about this at my EclipseCon talk: Aspects Everywhere: Using Equinox Aspects to Provide Language Developers with Deep Eclipse Integration.
JDT has not been engineered to be extensible, and rightly so. It is a set of tools that are finely tuned towards making the Java development experience as smooth and convenient as possible. Focusing on extensibility would be to the detriment of the JDT users who program in Java only.
However, this makes life difficult for us tool developers. Users expect high quality tooling for Java-like languages (i.e., languages that run on the JVM) because that is the bar set by JDT. Furthermore, they want tooling that integrates seamlessly with Java tooling. But, JDT won't do that! So, how can we provide good programmer experience in AJDT?
We want to make editing AspectJ look and feel as much like editing Java where it makes sense, and at the same time provide additional functionality so that the user is aware of AspectJ-specific issues. Up until AJDT 1.6.2, there have been limited options to integrate with JDT.
One example of successful integration is the AspectJEditor, which behaves mostly like JDT's CompilationUnitEditor, providing eager error detection, syntax highlighting, content assist, some refactoring support, etc.
The AspectJEditor should be a subclass of the CompilationUnitEditor, But the CompilationUnitEditor is not public API and AJDT really shouldn't be touching it. Or, at least, the responsibility is on us to maintain compatibility in future versions. In addition to using private APIs, the AspectJEditor uses some reflection to access private fields of its super class and copies some code, where reflection isn't practical. Through this combination of techniques, we have been able to largely implement JDT's behavior in AJDT. But, there is some functionality that we want AJDT to provide, but is not possible using private APIs, reflection, or code copying.
Let's take a look at the Open Type Dialog.
We would really like to see our aspect types in the standard Java Open Type Dialog. But this is unfortunately not possible. There is no API (public or private) that we can use to do this. Even the use of reflection or code copying will not help. What we really need is to gain access to JDT's Java indexer and somehow convince it to index aspect files.
This is a big problem, and one that we have run into many times during our development of AJDT. JDT is not engineered to be compatible with Java-like languages. But, tools for languages such as Groovy, Scala, and JRuby are gaining in popularity and require the same kind of JDT integration that is just not available. There is a long standing JDT bug to address this, but it does not seem like it will be fixed any time soon.
However, there is a solution! Since AJDT 1.6.2, we have been able to provide deep integration with JDT by using AspectJ on JDT itself. We are using Equinox Aspects to weave into the platform and expose functionality in a structured way through the use of Eclipse extension points. In future posts, I will describe how we have designed our JDT weaving service to expose otherwise inaccessible functionality in JDT and how this weaving service is generic enough to be used by tool developers for other languages.
You can also hear more about this at my EclipseCon talk: Aspects Everywhere: Using Equinox Aspects to Provide Language Developers with Deep Eclipse Integration.
